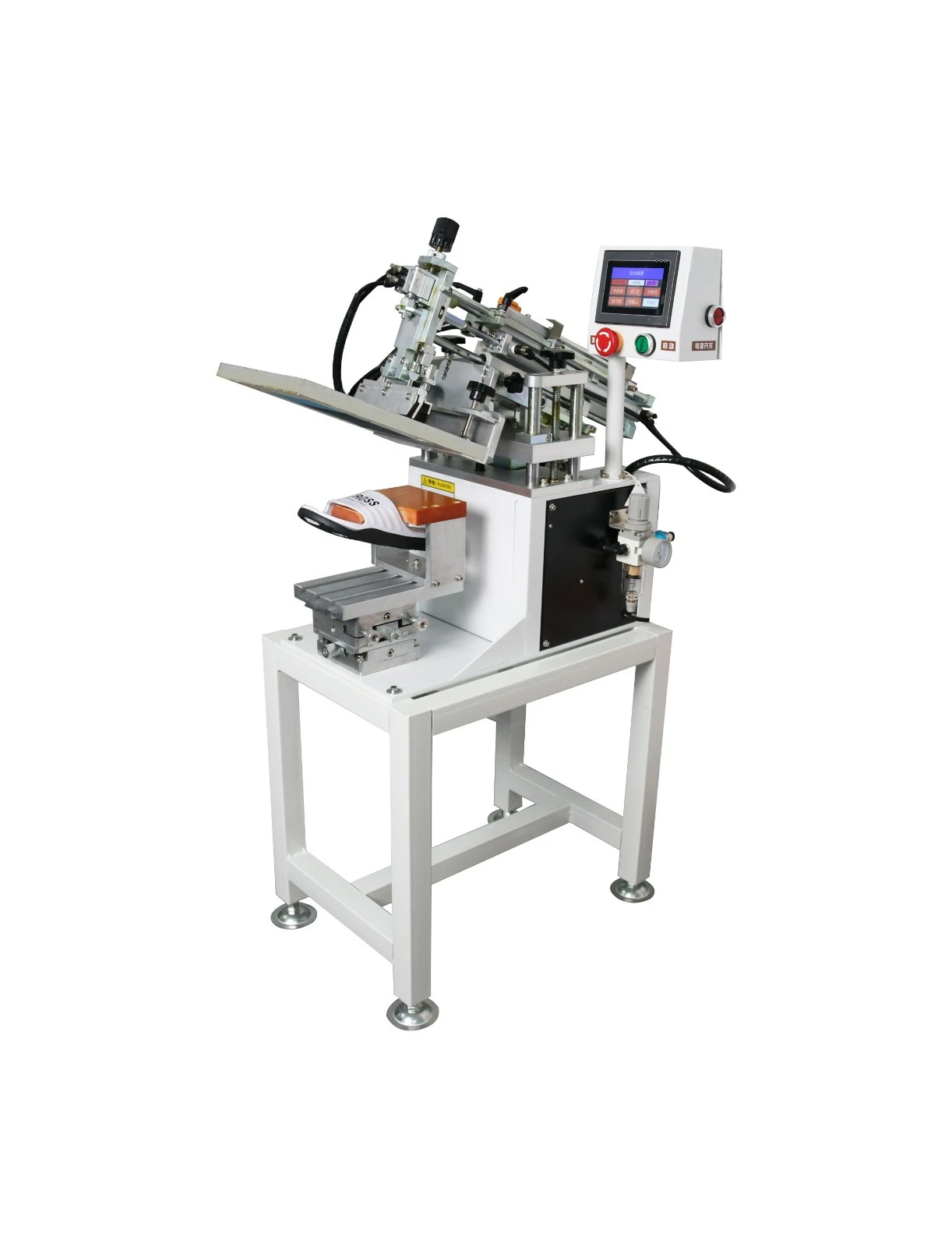

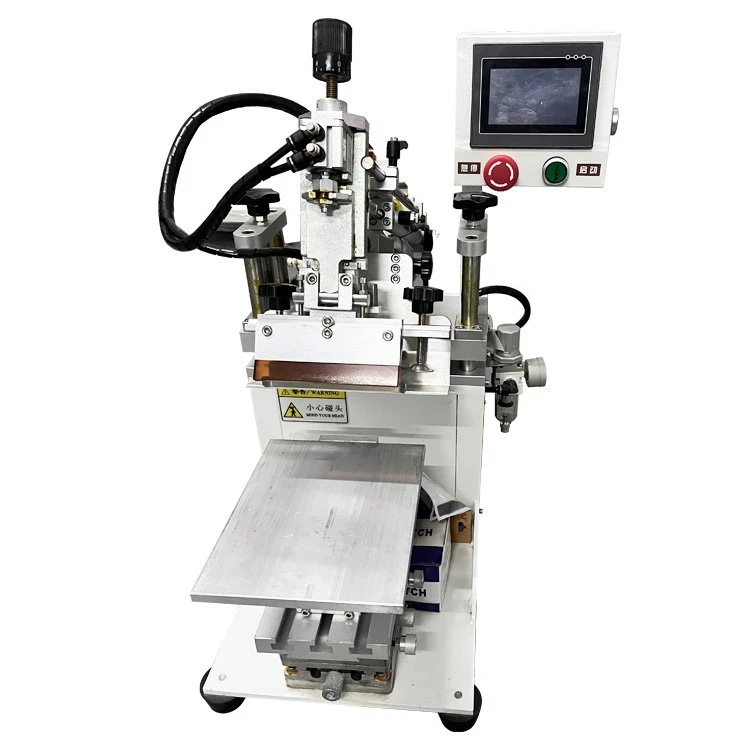

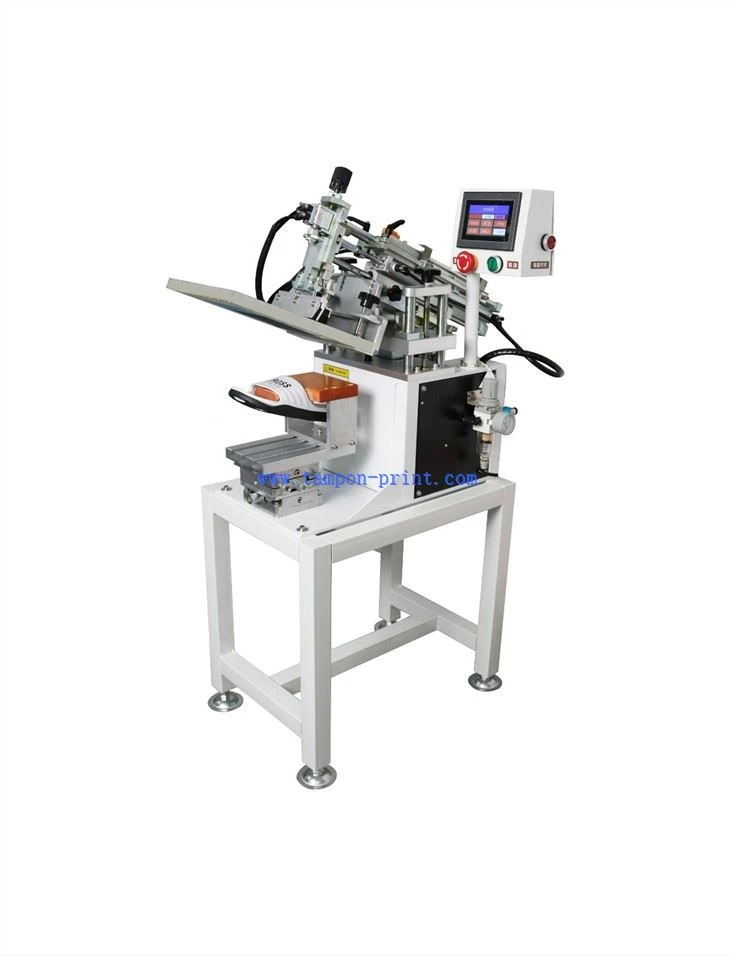

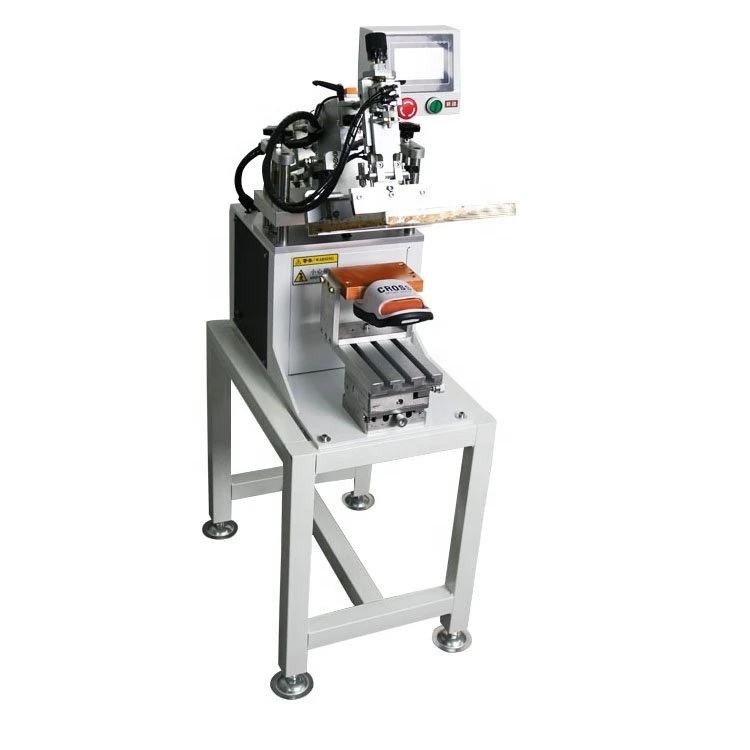

Small Table Screen Printing Machine
Small table screen printing machine with 120*180MM working station, 80*100MM max printing area. Good for flat surface printing, such as glass, paper, pastic, wood, metal and so on.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of small table screen printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
Products Description
Small table screen printing machine with 120*180MM working station, 80*100MM max printing area. Good for flat surface printing, such as glass, paper, pastic, wood, metal and so on.
Products Fuctions
1). computer control and operate all of functions of machine, high automation and easy operation.
2). equipped with four-digit auto counter.
3). it can be a round and conical printing function.
4). automatically scraping ink, backing ink, and worktable lift and down, it can not only operate easily, but also ensure printing quality stable.
5). Small table screen printing machine the printing stroke and speed can be adjustable to meet different printing requirements.
6). self-balancing of the blade, to ensure printing pressure balance
7). worktable and silk frame can all be lightly adjusted in back and front, left and right ,high printing precision it is also adjusted easily and fast.
8). part of the scraper can be independently lifted, replacement and cleaning easy and convenient network box.
Products Data
Model | TS-D100 |
Worktable Selection | Vacuum System |
Worktable Size | 120x180mm |
Max. Printing Size | 230x160mm |
Max. Substrate Height | 150mm |
Max. Printing Speed | 1300pcs/hr |
Air Pressure | 6bar |
Rated Voltage | 220V 50Hz |
Power | 0.04kw |
Dimension(L×W×H) | 600x500x1050mm |
Weight | 50kg |
FAQ
Q1. Can we print our own logo?
A. Yes,we offer OEM service.
Q2. Do you provide sample?
A. Yes,we provide sample and the sample cost will be reback to you when confirm the order
Q3.Can we cooperate with Shenzhen Tampon Print ask for agent or exclusive agency?
A: Of course, welcome.
Q4.How to contact, negotiate and cooperate with Shenzhen Tampon Print ?
A: Kindly contact Shenzhen Tampon Print’s international team by Email, Telephone and other efficient communication way.
