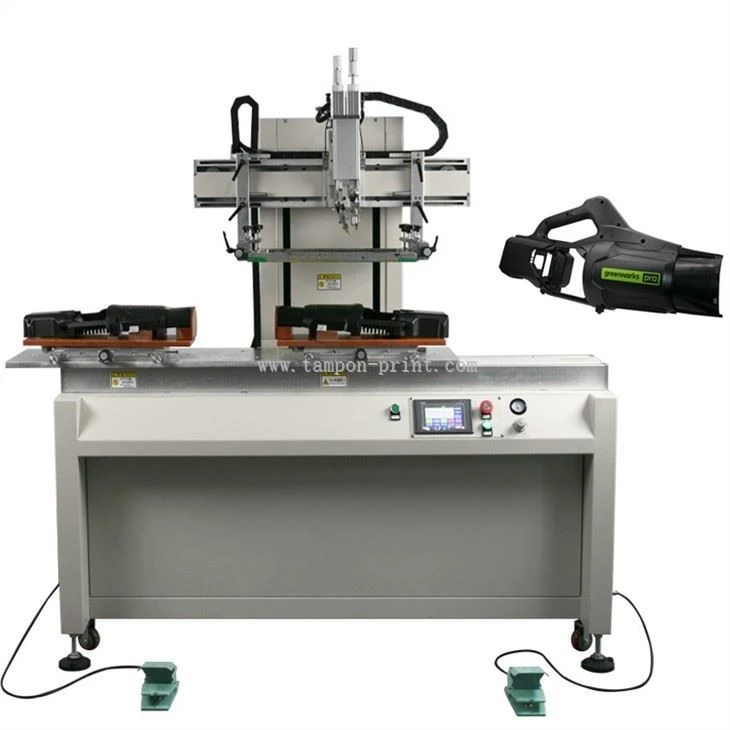

Semi Automatic Big Screen Printing Machine
1color 2 stations pneumatic manual screen for big size box plastic printing machine. Specially customized according to customer needs, 2 operators for loading and unloading, the machine adopts servo shuttle, and the printing positioning is more accurate.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of semi automatic big screen printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]
Specially customized according to customer needs, 2 operators for loading and unloading, the machine adopts servo shuttle, and the printing positioning is more accurate.
[ PRODUCT FEATURE ]

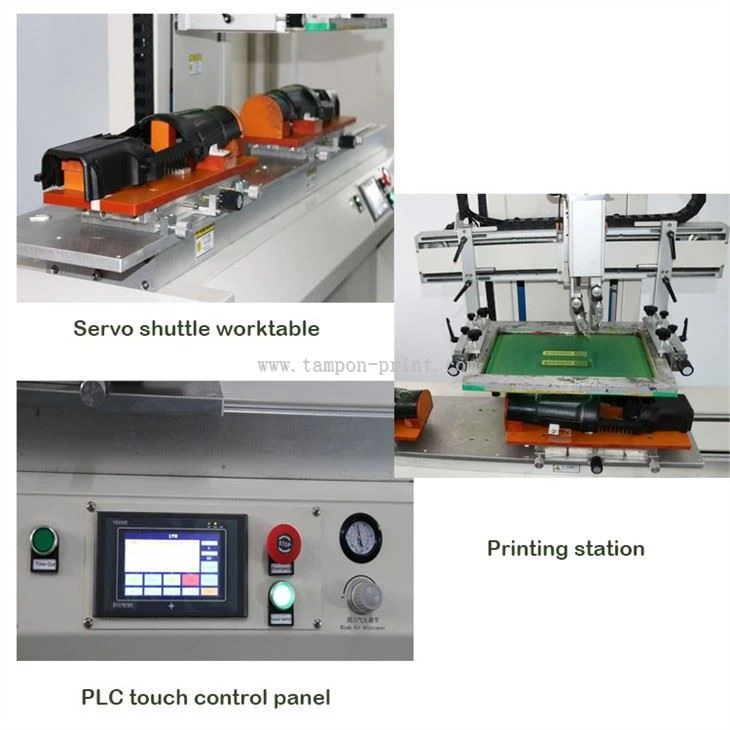

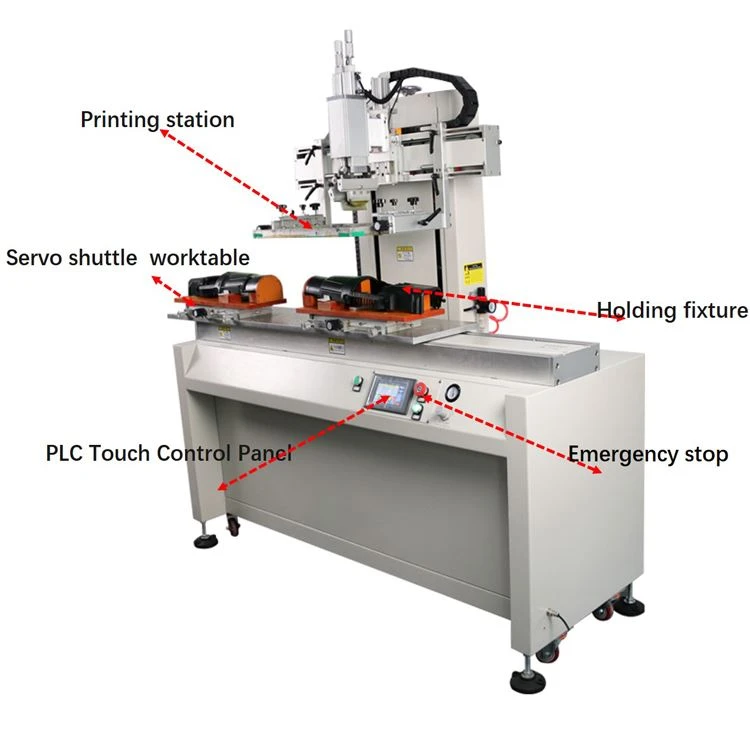

Feature:
1.Motor driven vertical screen lifting system .
2.Plastic screen printing machine with PLC touch control panel with easy operation.
3.Servo motor and HIWIN liner guide drive left-right precise print.
4.Three modes: manual/semi-automatic /automatic, the break time of printing is digital controlled.
5.Independent printing head up-and-down movement device makes the installation and disassembly of scraper, ink blade, and screen frame more convenient.
6.Double guide column clamps arm make the installation and adjustment of screen frame more convenient.
7.Install slider and liner guider to move the frame holder, easy to install the mesh frame.
8.Can be operated by 2 operators at the same time, printing faster.
[ PRODUCT SPECIFICATION ]
|
Model |
TS-3040S2 |
|
Color |
1 |
|
Worktable Size |
400x500mm |
|
Max. Printing Size |
300x400mm |
|
Max. Printing Speed |
800pcs/hr |
|
Related Voltage |
220V,50Hz |
|
Air pressure |
6 bar |
|
Dimension(L×W×H) |
650*1700*1800mm |
|
Weight |
280kgs |
[ PAD PRINTER PRINTING STEPS ]
[ PRODUCT APPLICATION ]
[ FAQ ]
Q1.What's the package way of this silk screen printing machine?
A:It will be packed into wooden case to protect the machine, if you also need other machines, they also can be packed with the machine together to save the freight.
Q2. what's the payment ways you accept?
A:You can make the payment by Credit Card ( place the order via Escrow), Western Union, Paypal, T/T(Telegraphic Transfer) etc.
if you make the large order, you can make the payment 30% T/T in advance, 70% balance against the copy of B/L.
Q3. Are you manufacturer or trading company?
A:We're manufacturer with 20 years experience in this screen printing field, our company is located in Shenzhen city, China, clients are welcomed to visit our factory.
Q4. Whether we accept special order according customized size?
A:As a export manager and engineer more than 15 years in this screen printing field, we are glad and capable to meet the client's customized demand.
