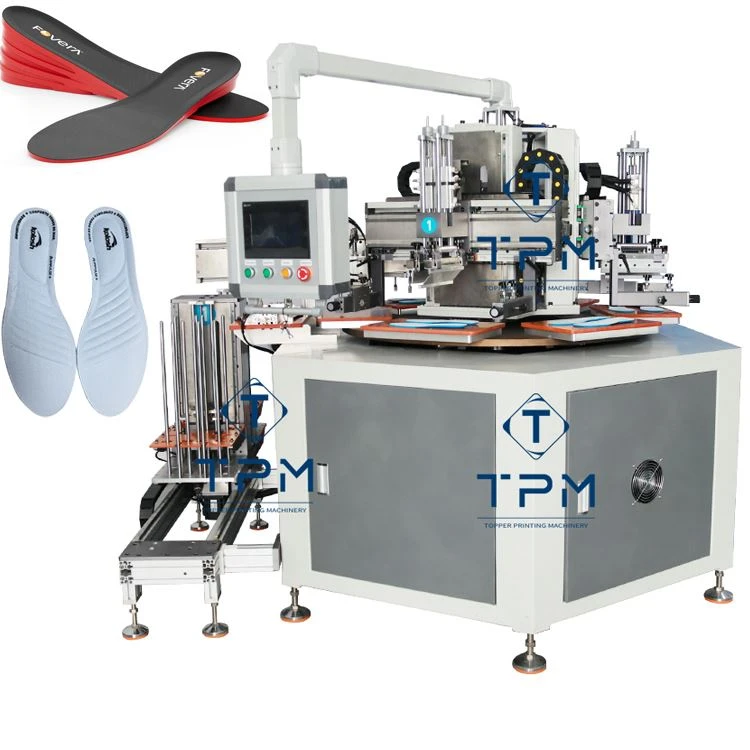

Automatic Shoe Insole Label Printing Machine
This device is designed specifically for efficient and high-precision printing of insoles, integrating automation, intelligence, and stability to significantly improve production efficiency and printing quality. It is suitable for mid to high end shoe manufacturing scenarios.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of automatic shoe insole label printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.

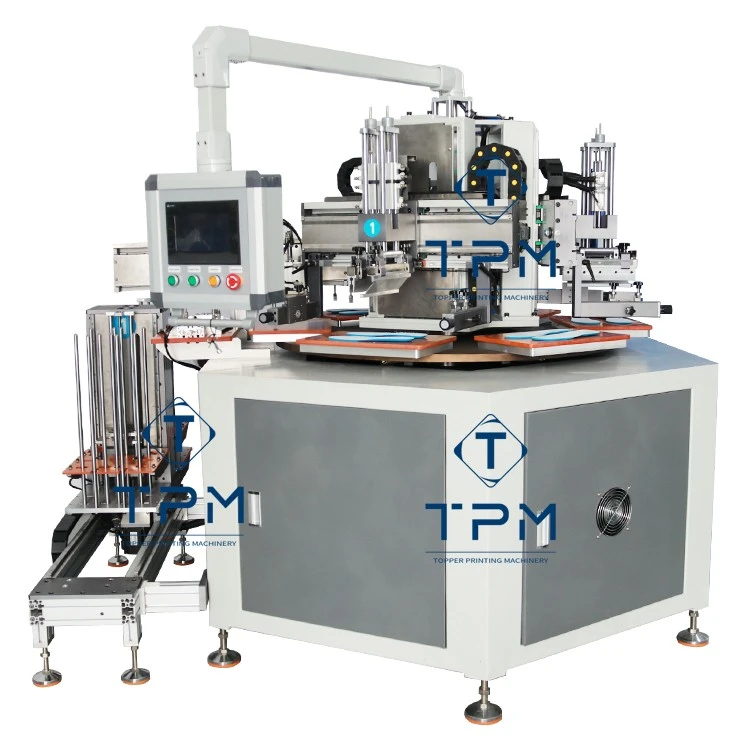

Automatic shoe insole label printing machine
This device is designed specifically for efficient and high-precision printing of insoles, integrating automation, intelligence, and stability to significantly improve production efficiency and printing quality. It is suitable for mid to high end shoe manufacturing scenarios.

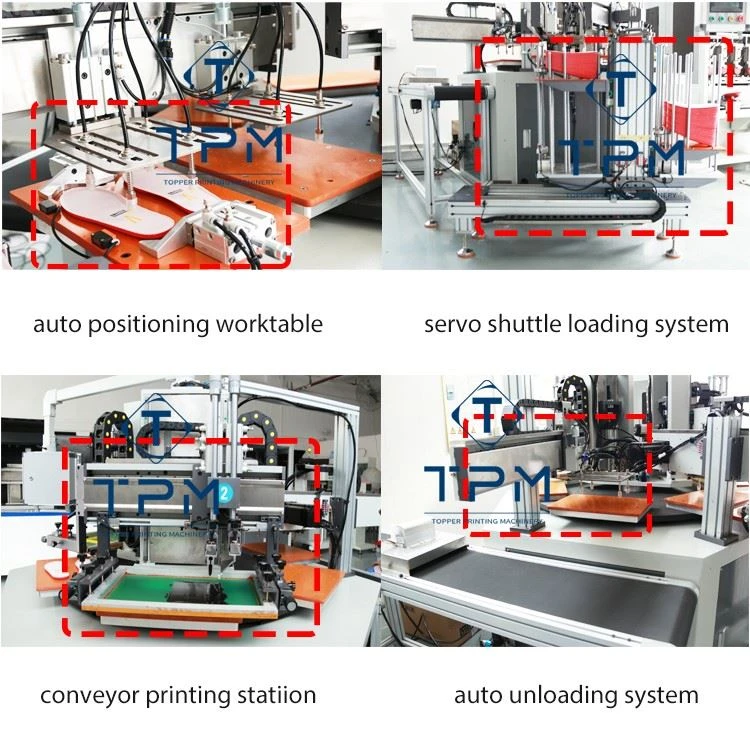

loading
At the loading rack position, stack approximately 50 pairs of insoles in advance at once
printing
Using a cam index conveyor table for precise movement for multi-color printing
unloading&drying
After printing, the insoles are automatically sucked into the discharge conveyor belt for drying
Our factory & quipment
Lorem ipsum dolor sit, amet consectetur adipisicing elit.
Machine features
1. Intelligent control and convenient operation
PLC+360 ° Rotating Touch Screen: Industrial grade PLC control system ensures stable operation, paired with a high-sensitivity touch screen that can rotate 360 °, supporting multi angle operation, flexible and intuitive parameter adjustment, and reducing manual training costs.
2. High precision printing and stable production
Cam indexing transmission station: adopts a precision cam indexing mechanism with a positioning accuracy of ± 0.05mm, ensuring that the printed patterns are not offset and suitable for complex patterns and gradient color requirements.
3. Dual servo automatic loading system: equipped with two sets of independent servo shuttle mechanisms, achieving fast loading and precise positioning of insoles, seamlessly connecting the printing process, and reducing single cycle time by 30%.
4. Vacuum adsorption workbench: Strong vacuum adsorption technology ensures that the insole has no displacement during high-speed printing
Efficient drying and continuous production
5. Infrared (IR) drying system: solidifies ink, reduces waiting time, supports instant printing and delivery, and works with the discharge conveyor belt to achieve full process automation.
Flexible adaptation and humanized design
6. Dual station synchronous printing: It can complete double-sided synchronous printing of one pair of insoles at a time.
About our company
Shenzhen Topper Printing Machinery, as a printing equipment solution, has been deeply involved in the field of screen printing/transfer pad printing/screen printing machine/hot stamping technology for 18 years, focusing on providing customized and fully automated intelligent printing systems for global customers.
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
industry-leading
18 years of printing mechanical products precipitation,products mature and stable
01
High market share
Benchmarking machinery has great influence,covering 1,000 companies and 15 well-known enterprises across the country
02
Customization and automation
As a printing equipment manufacturer, we provide one-stop customization and automation services
03
Perfect product system
Customiezed + technology solutions,complete product architecture system
04
Efficient after-sales service
To provide customers with a range of product services,24 hours online
