Pen Screen Printing Machine
The pen screen printing machine, screen printing on standard pen barrel, it can print full circle image or barrel with taper in 3°.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of pen screen printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]
The pen screen printing machine, screen printing on standard pen barrel, it can print full circle image or barrel with taper in 3°.
[ PRODUCT FEATURE ]
Feature:

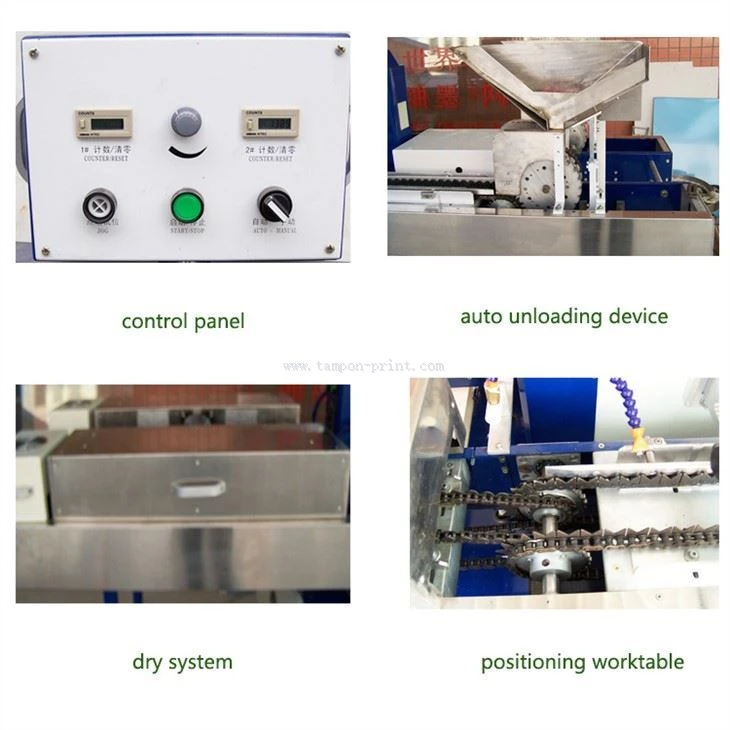

1. Fully automatic loading and unloading, stable and smooth operation;
2. The printing stroke and speed can be adjusted at will;
3. Taiwan inverter controls constant torque operation to ensure consistent printing effect;
4. Adopt optical fiber detection + suction cup suction flexible contact U-turn solution to avoid scratches on the surface of the workpiece to the greatest extent;
5. The auto screen printing machine with IR dryer system
[ PRODUCT SPECIFICATION ]
Mode | TS-80P |
Diameter of printing objects | φ3～φ20mm |
Length of printing objects | 60～160mm |
Width of printing route | 20～80mm |
Printing Speed | 8000pcs/hr |
Power | 220V 50/60Hz 5.5KW |
Weight | 600kg |
Machine Dimension | 3200×1120×1520mm |
[ PRODUCT APPLICATION ]

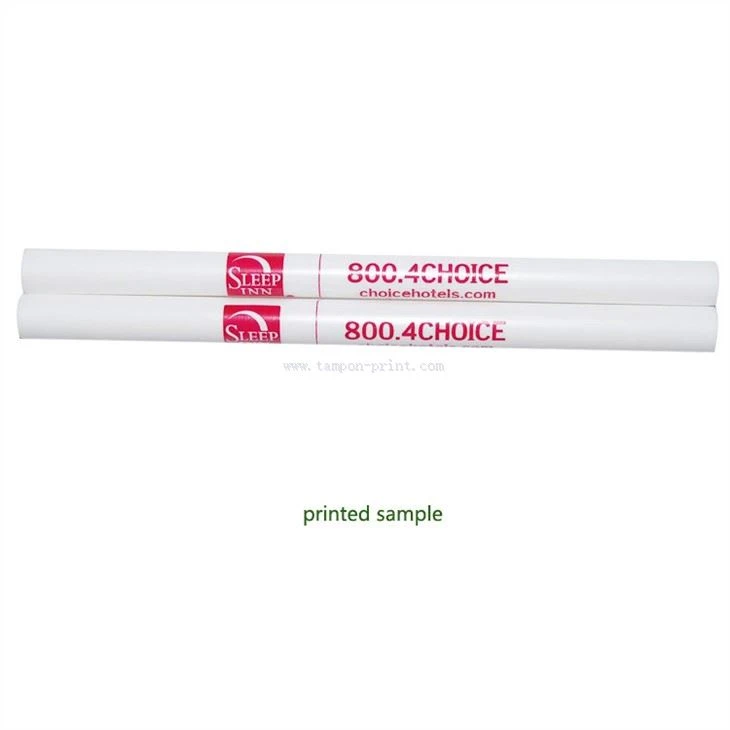

It can be widely used for monochrome high-speed printing of original ball pens, eyebrow pencils, hydrolysis pens, pencils, markers, whiteboard pens, lipsticks, medical test tubes and other objects.
[ COMPANY PROFILE ]
[ CERATIFICATIONS ]
[ SHIPPING ]
(1) Internal: Plastic stretch film wraps the entire machine.
(2) Middle: The machine is fixed with tie ropes and screws to prevent the machine from tilting during transportation and reduce machine shaking.
(3) Outside: standard export wooden case, plywood case for each machine.
[ SALES SERVICES ]
[ FAQ ]
Q1. Are you a factory or a trading company?
A: We are a factory specializing in the production of printing equipment, with rich production experience in this industry.
Q2. How about the packaging?
A: Plywood case , no fumigation is required, and the machine feet will be fixed on the pallet for easy movement during transportation
Q3. Do you provide OEM service?
A: Yes, we have. Welcome interested overseas customers to represent our business on a global scale
Q4: How does your company do in terms of quality control?
A: Quality comes first. Our company has passed the CE certification.
