Baby Spoon Conveyor Pad Printing Machine

This press a print pad printer specially design for printing mask, also we can change the holding fixture to print different kinds of product, like flat, curved, irregular products, the use of tagless pad printing machine is very wide.

Send Inquiry Chat Now

Description

Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of baby spoon conveyor pad printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.

Products Description

This Baby Spoon Conveyor Pad Printing Machine specially design for printing baby porduct, also we can change the holding fixture to print different kinds of product, like flat, curved, irregular products, the use of tagless pad printing machine is very wide.

1

Plasma Pre-treatment
2

Printing Station
3

Auto unloadind device
4

Conveyor table

Features

We offer a variety of printing machines

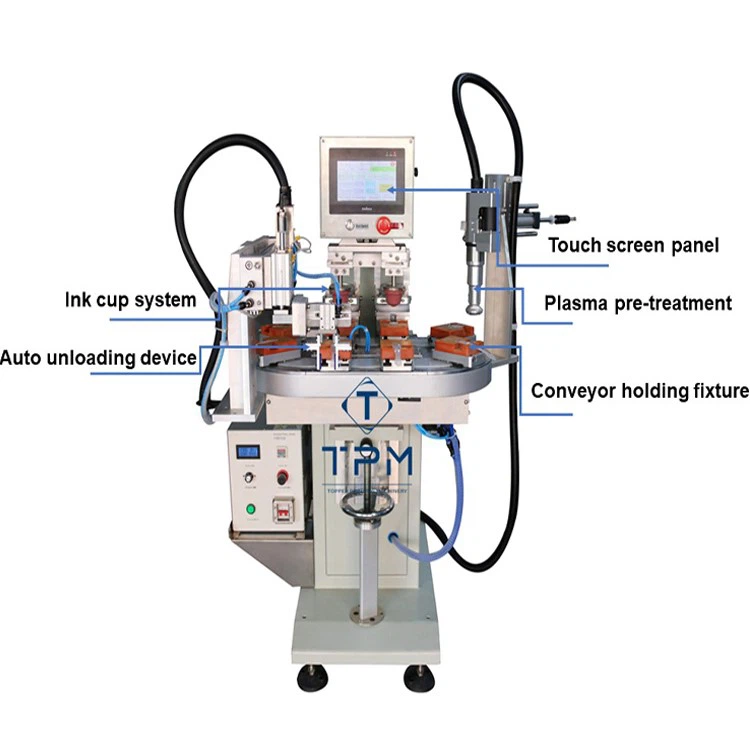

Operation Panel

The PLC control panel makes operation of this machine incredibly easy and user-friendly.

Machine case

The high intensity cast aluminium frame ensures a sturdy and durable machine structure that will withstand regular use.

Ink cup

By utilizing a close ink cup system, this printer is able to save ink while also emitting low amounts of unpleasant odors.

Printing speed

The printing speed of this machine can be adjusted to meet various printing requirements.

Pre-treatment

The plasma pre-treated system ensures high-quality printing, every time.

Auto unload

With the auto unload system, this machine makes printing even more efficient and hassle-free.

Conveyor stations

Featuring 8 printing stations, users will have plenty of flexibility when setting up their printing projects. Overall, this machine is built to provide users with a reliable and efficient printing experience

[ PRODUCT SPECIFICATION ]

Model	TP-150C2
Operation	Pneumatic
Printing color	2
Cup diameter	Φ 90mm
Plate area	100*250mm
Max printing area	70*70mm
Max. Printing Speed	1000pcs/hr
Rated Voltage	220V 50Hz
Dimension(L×W×H)	900×170×1350mm
Weight	150kg

Printing process

The process of the tampo pad printing machine:

1. The ink is evenly covered on the steel plate.

2. Scrape off the excess ink with a scraper.

3. Lower the silicon pad to the steel plate to pick up the ink in the logo.

4. Move the silicon pad down to the product to cover the pattern.

Machine Application

Pad printer applicable industries: plastic industry, toy industry, glass industry, metal industry, electronics industry, sporting goods, stationery industry, optical industry, etc.

About TPM

Shenzhen Tampon Print Machine Ltd. is located in Dongguan, Guangdong. Specializing in the production of printing equipment with more than 18+ years experiences, We are a production and sales services in one. According to customer requirements, for you to order high-end automatic one-stop printing system.

We have strong technical support, advanced production equipment and professional staff who dedicate to products research, development, manufacture, installation, test and maintenance.
