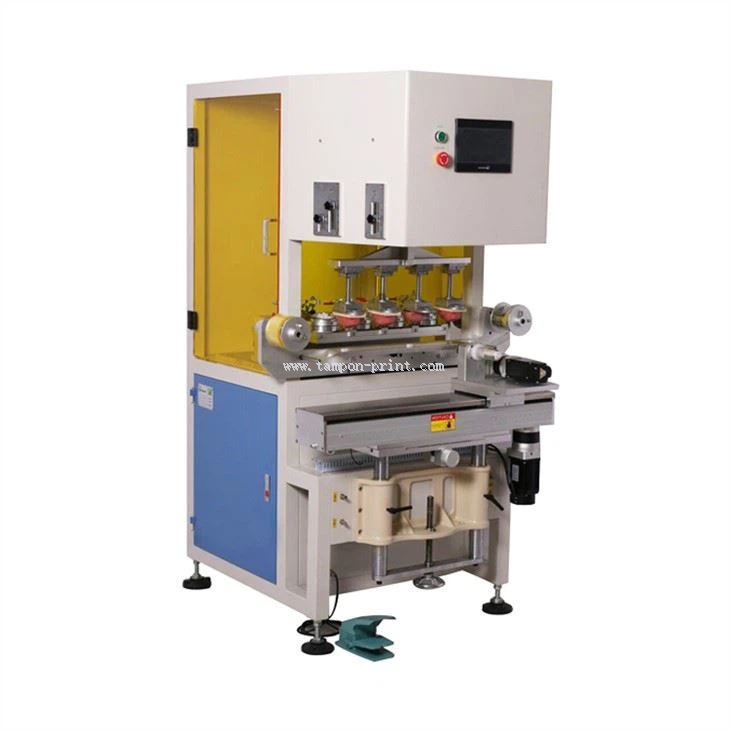

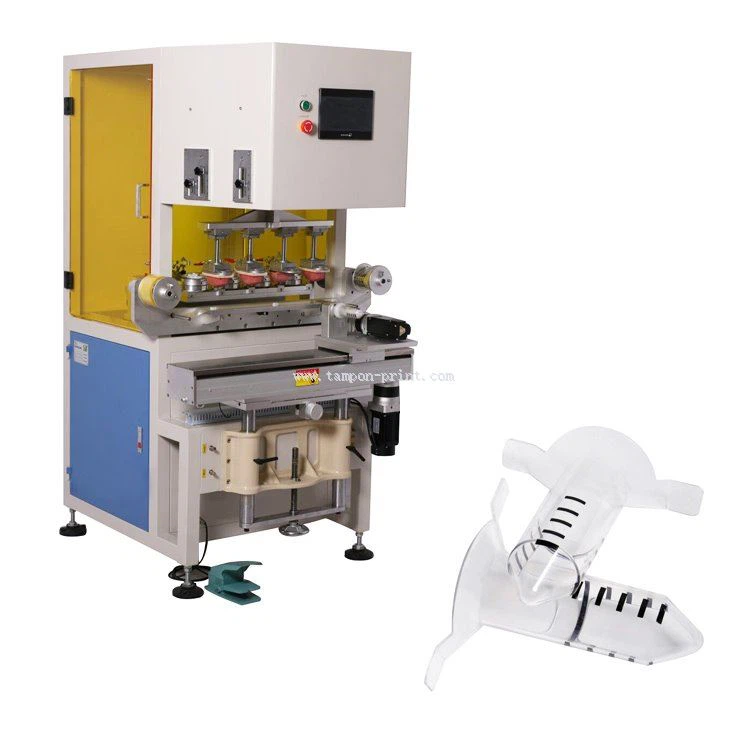

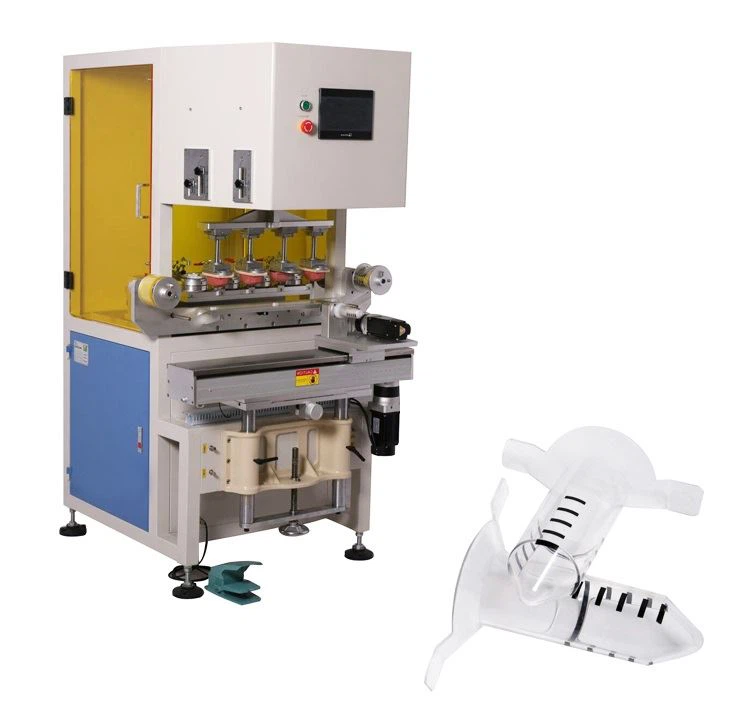

Motorised Pad Printing Machine
The motorized pad printing machine is special designed for servo motor, programmable servo motor driven part shuttle for high accuracy, the tampography printing machine also add the pad cleaning device
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of motorised pad printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]
The motorized pad printing machine is special designed for servo motor, programmable servo motor driven part shuttle for high accuracy, the tampography printing machine also add the pad cleaning device, It can keep the silicon pad clean at all times without leaving extra marks on the product.

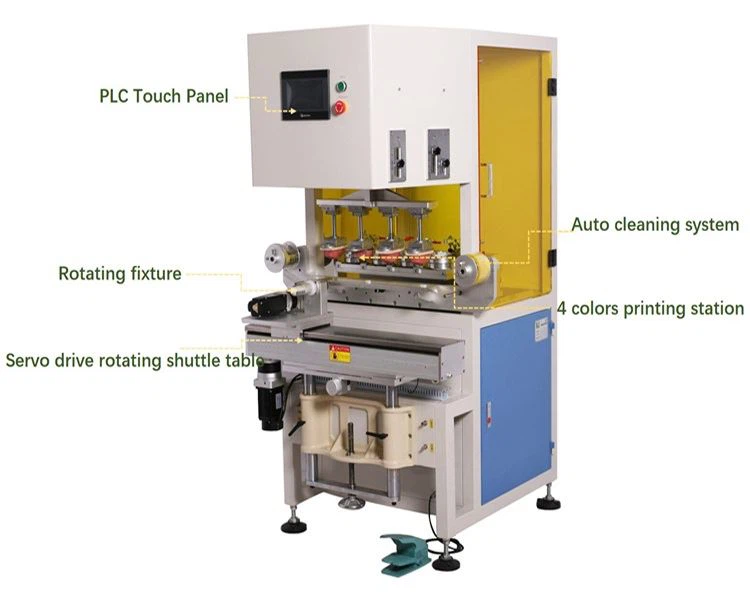

[ PRODUCT FEATURE ]
Feature:
1. Ink cup style more environmentally friendly.
2. PLC control with servo motor, have good position.
3. Servo driven shuttle and rotate working table for precision run
4. Servo motor guide drive pad front-back with precise color registration
5. Using clean, environmentally friendly ink cup supply system
6. Pad up-down and ink cup front-back independent adjust speed
7. Adopt Air TAC cylinder and electronic parts to make sure machine quality
8. Can be chosen auto pad clean system for better print quality
9. With auto cleaning device
[ PRODUCT SPECIFICATION ]
Model | TP-150S4S-R |
Print Accuracy | +/- 0.03mm |
Ink Cup Size | Ø90*82*12mm |
Steel Plate Size | 100*250*0.5mm |
Ink Cup Stroke | 150mm |
Pad Stroke | 80mm |
Max. Printing Speed | 800pcs/hr |
Air Pressure | 6bar |
Rated Voltage | 220V 50Hz |
Dimension(L×W×H) | 1100*1000*1680mm |
Weight | 300kg(Approx.) |
[ PRODUCT APPLICATION ]
Silicone pad printing it has a wide application range, high printing efficiency , economy and environmental protection, easy operation. To meet different printing environment (flat , curved, irregular surface). Graphic printing requirements. but also we can design specific models for specific product requirements
Widely used in electronics, electrical appliances, metal, plastic toys, stationery and other industries
[ COMPANY PROFILE ]
[ CERATIFICATIONS ]
[ SHIPPING ]
(1) Lnner: Plastic stretch film wraps the entire machine to prevent the machine from being wet.
(2) Middle: The machine is fixed with tie ropes and screws to prevent the machine from tilting during transportation and reduce machine shaking.
(3) outside: standard export wooden case, plywood case for each machine.
[ SALES SERVICES ]
[ FAQ ]
Q1. Are you a factory or a trading company?
A: We are the factory specialize in printing equipment with 20 years experiences, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, our products quality and services is guaranteed.
Q2: What is the packaging of the machine?
A. The machine will be fully covered with film, fixed around with screws, and packed in standard export wooden case
Q3. How long will it take to produce an order?
A: Lead Time is usually for 30-90 days, according to orders of customers and its requirement.
Q4. How can you warranty the after sale service if there is any machine problem?
1. Online video call service
2. Learn what exact problem it is and send video solution.
