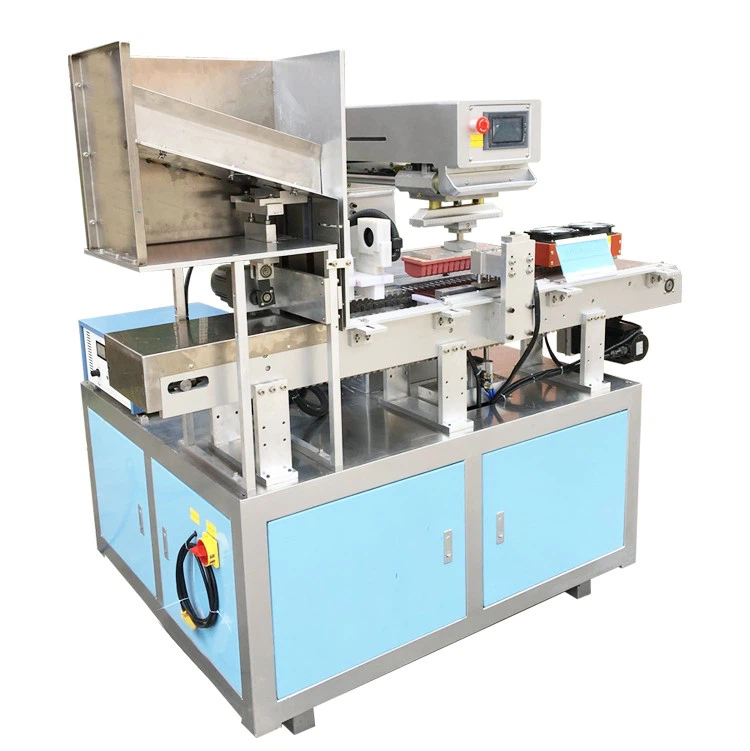

Automatic Plastic PLA Straw Pad Printing Machine

Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of automatic plastic pla straw pad printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.





product key technologies

01.

Automatic plastic PLA straw pad printing machine

The Automatic feeding system is a conveyor system specifically designed for printing slender hollow tube, allowing the tube to be oriented correctly for addition to the production line. It is an efficient way to increase the speed of assembly operations and gently separate bulk materials.

02.

plasma pre-treatment

Equipped with plasma pre-printing treatment to keep the surface of the straw free of impurities and ensure printing accuracy and quality

*PLC control panel. *Automatic feeding system.

*Auto "slots" support when print. *Auto conveyor unloading system.

*With food grade printing ink for safety to drink.

*Adjustable temperature hot air dry system.

*Automatic detecting function,not product not print. *

One stamping 16-20pcs straws for very high printing speed.

*Different size of the straws is avaliable to change the "slots" jip.

*Plasma pre-treatment before printing

*With pad cleaning device

What do we need to prepare in advance before Straw pad printing?



STEP 1



Etched logo steel plate

To print the logo or pattern, we need to prepare the printing document in advance. We need to make it on the steel plate according to the printing position



STEP 2



Complete silicon pad

Customized silicon pad and spacing based on printing spacing and straw size

STEP 3



Clamp holding fixture

This machine can print straws with a diameter of 6-12mm directly. For each straw with a different diameter, Because the clamp needs to be inserted into the straw, the straw will be flattened if the pressure is too great during printing, and the clamp for the straw can only be compatible as shown,the corresponding clamp holding fixtures need to be replaced



STEP 4



Transverse ink cup system

The ink cup adopts a left-right transverse movement printing form, with a long left-right printing stroke, and can print multiple 16-20 straws at once
