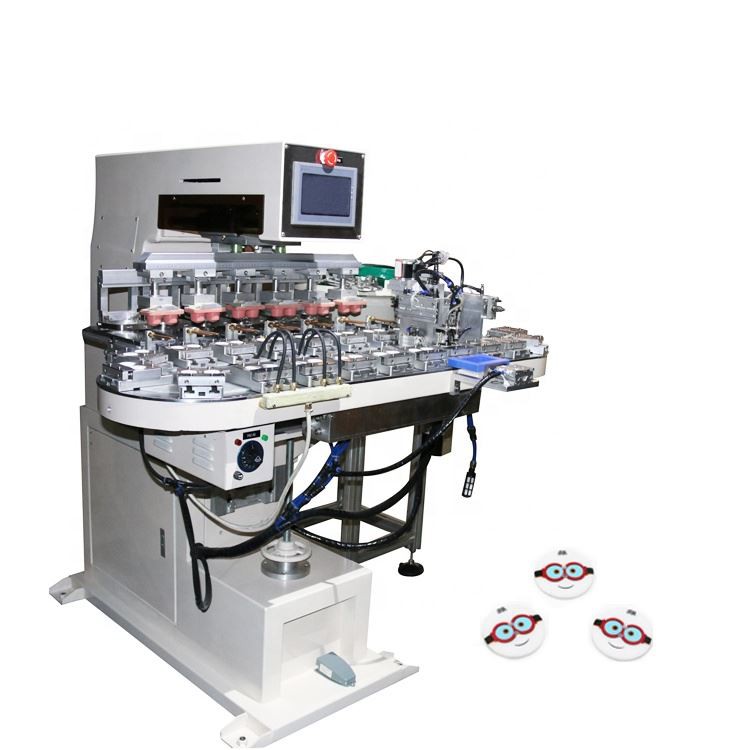

Automatic Buttons Ink Cups Pad Printing Machine
6-color buttons automatic pad printing machine, with fully automatic feeding, automatic hole position precise alignment, 1-6 color printing, hot air drying and automatic unloading system as a complete printing production line.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of automatic buttons ink cups pad printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]

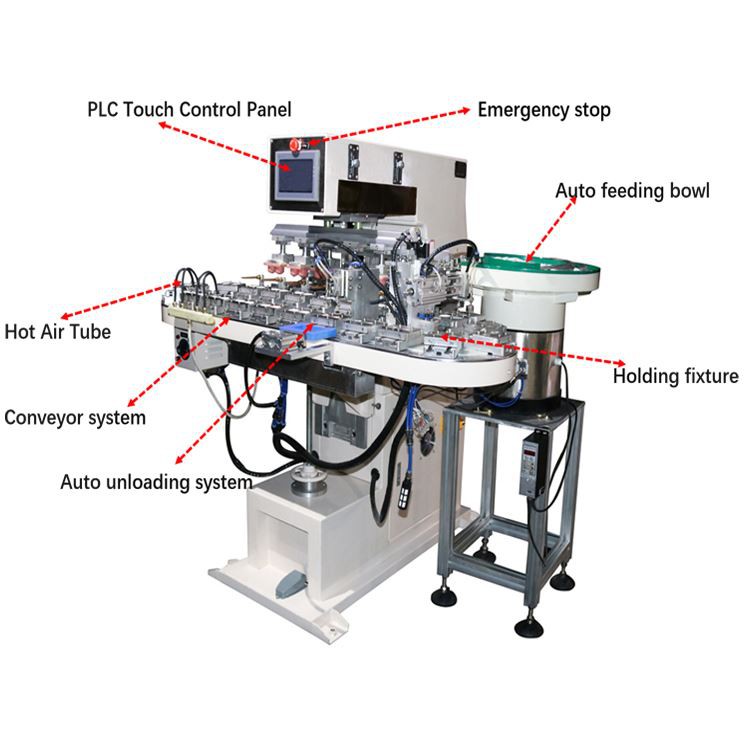

6-color buttons automatic pad printing machine, It is characterized by placing all those buttons, bottle caps, lids, etc. in high work capacity and perfect print quality. With fully automatic feeding, automatic hole position precise alignment, 1-6 color printing, hot air drying and automatic unloading system as a complete printing production line.
[ PRODUCT FEATURE ]
1.6-colors buttons pad printing machine

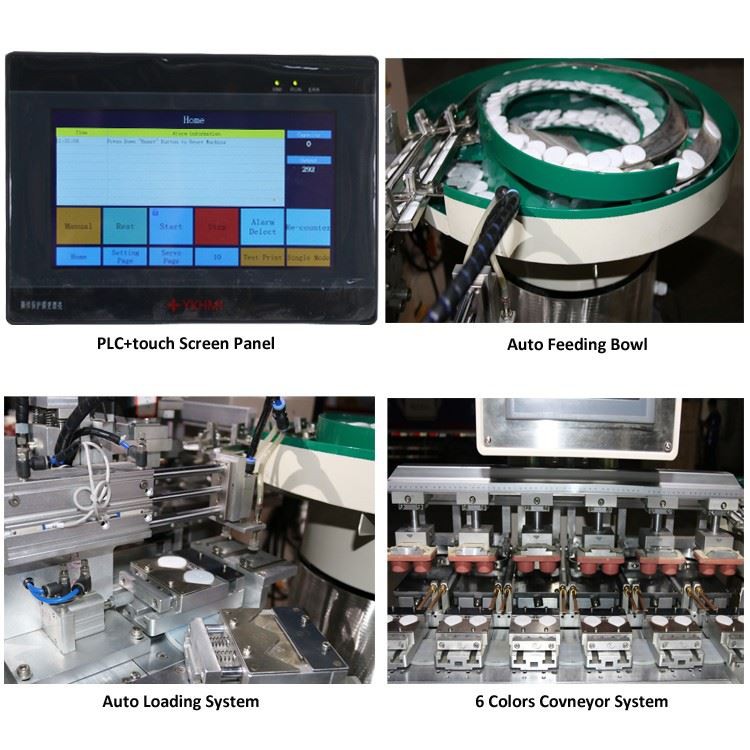

2.PLC+touch screen panel
3.Auto vibration feeding bowl system
4.Air sucker to load the button on fixture
5.Servo motor and sensor for color registration
6.Closed ink cup for save ink and low smell
7.Hot air drying system
8.Auto take off system
9. Famous brand pneumatic components, make sure the printing machine can change and stability.
[ PRODUCT SPECIFICATION ]
Model | TP-250C6S |
Ink loading system | closed ink cup |
Ink cup size | 90mm |
Printing color | 6 |
Printing button size | dia.20-50mm |
Printing station | 22pcs |
Steel plate | 100*300mm |
One stroke print qty. | 2 pcs |
Max. printing speed | 1000pcs/hr |
Rated voltage | 220V 50Hz |
Air pressure | 6 bars |
Dimension(L×W×H) | 1700*1400*1580mm |
Weight | 500kgs(Approx.) |
[ COMPANY PROFILE ]
[ CERATIFICATIONS ]
[ FAQ ]
Q1. How do I know which machine is suitable for printing my products?
A: You can send us your products details, we will recommend suitable machine according to your products.
Q2. How could I contact to get the details of my interested items?
A: Please send inquiry on Alibaba directly, or contact me directly.
