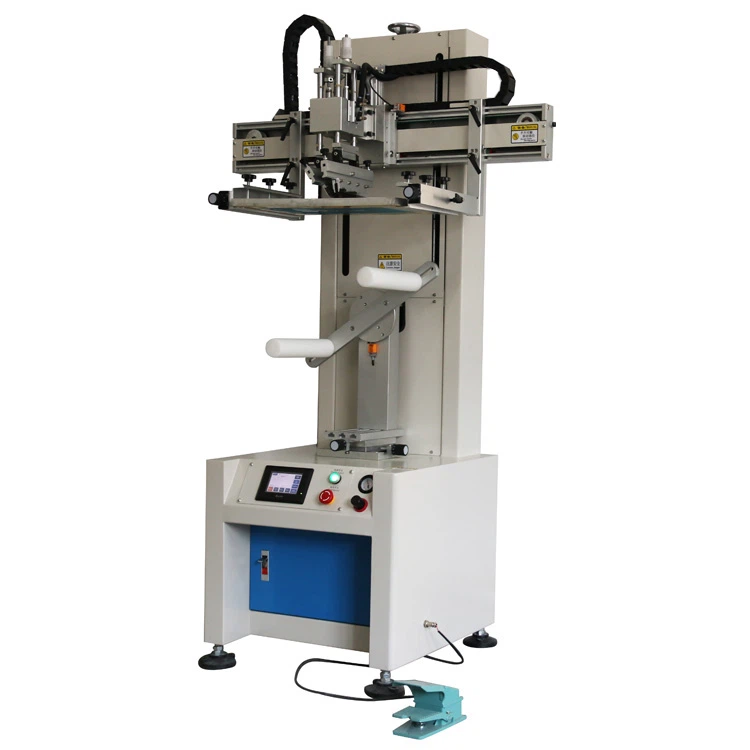

Rotary Crate Screen Printing Machine
This electric screen printing press is suit for print plastic box/basket, can be automatic turn to other side of the box, no need rotary by manual.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of rotary crate screen printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]

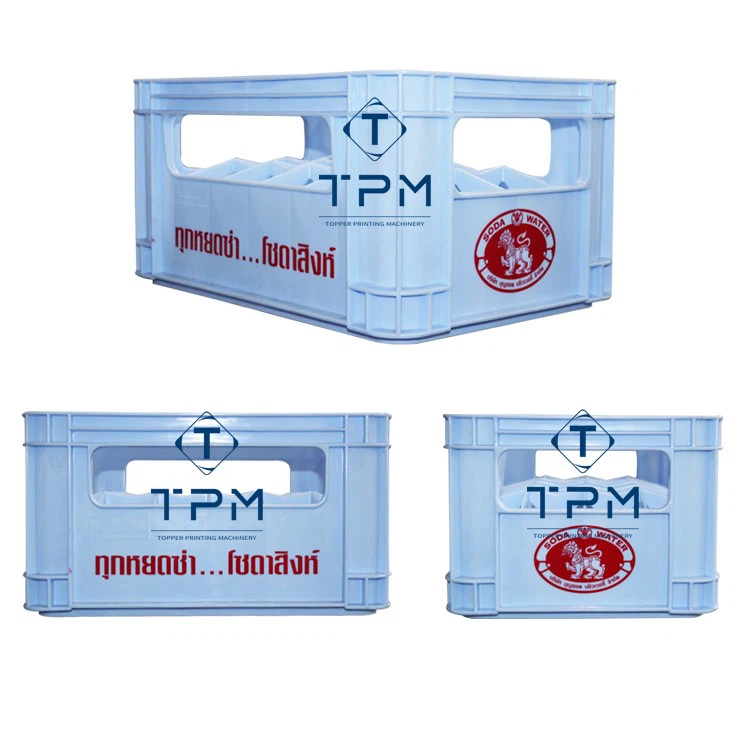

ThisRotary Crate Screen Printing Machine is suit for print plastic box/crate, can be automatic turn to other side of the box, no need rotary by manual.can print 2 sides at one time.
Our factory & quipment
Lorem ipsum dolor sit, amet consectetur adipisicing elit.
[ FEATURE ]

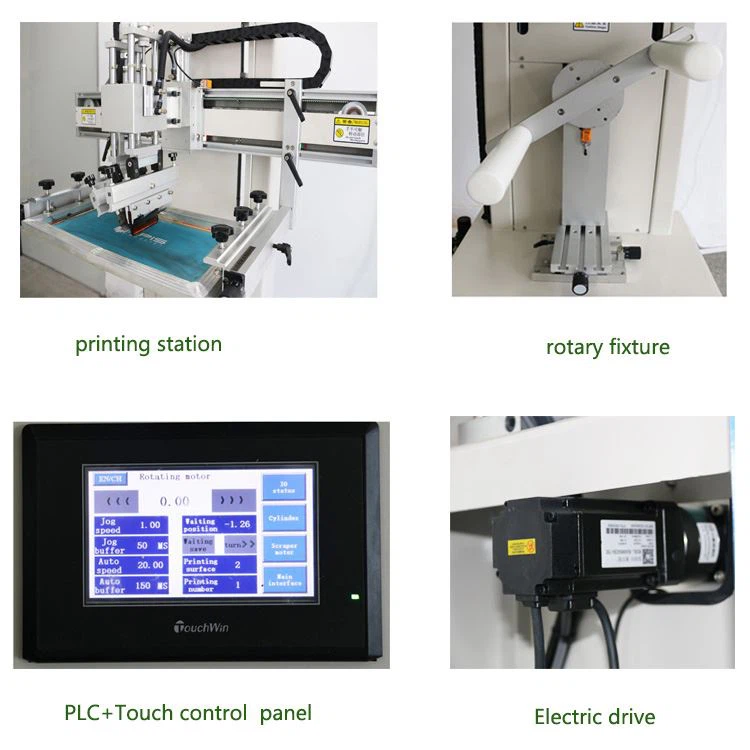

1. The rotary crate screen printing machine with PLC and the touch screen panel control, easy to operate, accurate and reliable.
2. Printing stroke and speed are adjustable to meet different printing requirements
3. Machine scraping, back toindependent power and precision fine-tuning device with a separate stroke and speed.
4. The table can be independently adjusted horizontal and vertical direction and angle of rotation, optional suction table or T-slot table tops.
5. The frame size , installation position of the free space, automatic off-grid.
6. Lift long stroke design for easy handling of the workpiece.
7. Using the German pneumatic components.
8. Machine servo rotation, can rotary print 2 sides at once
[ PRODUCT SPECIFICATION ]
|
Model |
TS-3050CP1 |
|
Worktable Selections |
Adjustable fixture |
|
Printing Color |
1 |
|
Printing Side |
2 |
|
Max. Printing Size |
300×500mm |
|
Max. Screen Frame Size |
400×600mm |
|
Max. Substrate Height |
250mm |
|
Max. Printing Speed |
1000pcs/hr |
|
Air Pressure |
6bar |
|
Rated Voltage |
220V, 50Hz |
|
Total Power |
1.5kw |
|
Dimension(L×W×H) |
750x650x1950mm |
|
Weight |
350kgs(Approx.) |
in one-stop service
Shenzhen Topper Printing Machinery Co.,Ltd is headquartered in Dongguan, Guangdong Province. With over two decades of industry expertise, we have established ourselves as a global provider of premium pad printing, screen printing, and hot stamping solutions. All our industrial printing equipment adheres to European CE safety standards.
Our commitment to product excellence is rooted in advanced manufacturing capabilities:
The company operates state-of-the-art production facilities, including dozens of high-precision CNC machining centers, automated printing lines, and specialized hot stamping equipment.
Stringent quality control systems ensure every component meets micron-level precision requirements.
Proprietary digital management platforms enable real-time monitoring of production processes, maintaining consistency across all product lines.
We combine cutting-edge technology with rigorous quality management to deliver reliable, high-performance printing machinery trusted by clients worldwide.
[ CERATIFICATIONS ]
[ FAQ ]
Q1. Can I customize my own design?
A: We have a professional R&D and technical team, we can customize the machine according to your needs, our company has customized machines for many customers.
Q2: What kind of pre-sale service do you provide?
A: Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.Similarly, we can help you conduct sample testing in advance, so that you can better see the operation and printing effect of our machine before ordering it
Q3. How do you control quality production?
A: We will do a test before delivery, for instance, let the machine work without products so that checkout the performance, ensuring the quality.
