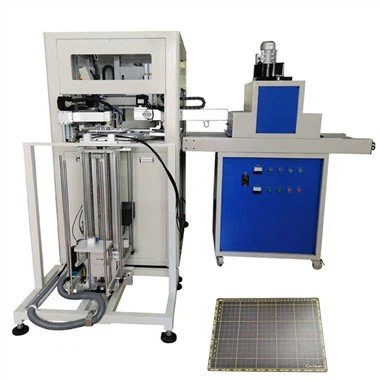

Automatic Multicolor Pen Cnc Screen Printing
Multicolor screen printing machine automatic marking pen screen printer equipment is used for printing on marking pens, hoses, bottles and other cylindrical products, equipped with an automatic feeding system and plasma. Pre-treatment system, servo motor color registration system, high printing accuracy, fast printing speed, about 3600 sheets/hour
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of automatic multicolor pen cnc screen printing in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
[ PRODUCT INFORMATION ]
Multicolor screen printing machine automatic marking pen screen printer equipment is used for printing on marking pens, hoses, bottles and other cylindrical products, equipped with an automatic feeding system and plasma. Pretreatment system, servo motor color registration system, high printing accuracy, fast printing speed, about 3600 pcs/hr.
[ PRODUCT FEATURE ]

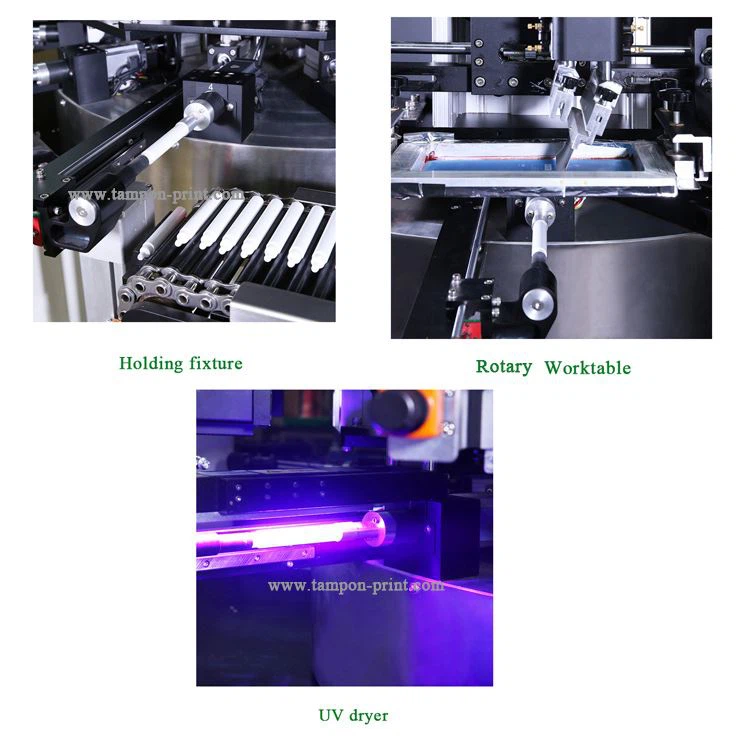

1.Auto loading and unloading with servo driven.
2.Remote control for maintenance.
3.Color registration with servo motor.
4.With plasma pre-treated system.
5.LED UV for color ink dry.
6.Famous brands of electric components.
7.PLC control ,touch screen display ,easy operation.
8.Easy to read and save parameters for different articles.
9.Servo preposition ,whole servo system to improve color to color register accuracy.
[ PRODUCT SPECIFICATION ]
|
Model |
TS-PSP3 |
|
Printing colors |
3 |
|
Drying system |
LED UV dry |
|
Pre-treated system |
Plasma |
|
Conveyor and rotation driven |
Index and servo motor |
|
Printing pen diameter |
5-50mm |
|
Printing angle |
0-360° |
|
Max printing speed |
3600pcs/hr |
|
Air pressure |
6 bars |
|
Dimensions |
2100*2100*2200mm |
|
Weight |
1200kgs |
[ CERATIFICATIONS ]
[ SHIPPING ]
(1) Internal : Plastic stretch film wraps the entire machine.
(2) Middle : The machine is fixed with tie ropes and screws to prevent the machine from tilting during transportation and reduce machine shaking.
(3) outside : standard export wooden case, plywood case for each machine.
[ FAQ ]
Q1.Are you a trade company or a manufacture?
A:We are a manufacturer, OEM & ODM service are available.
Q2.This is the first time I use this kind of machine, is it easy to operate?
A:There is English manual and guide video that show you how to use machine. If you still have any question, please contact us by e-mail / skype/ phone online service.
Q3.Do you provide machine installation and training services?
A:Our machine has been assembled before shipment, and can be used directly after receiving the machine. Similarly, we will also provide you with operation videos and installation steps, so that you can get started using the machine faster
Q4. The logo and the color can be customized?
A: Yes, we welcome you to sample custom.
