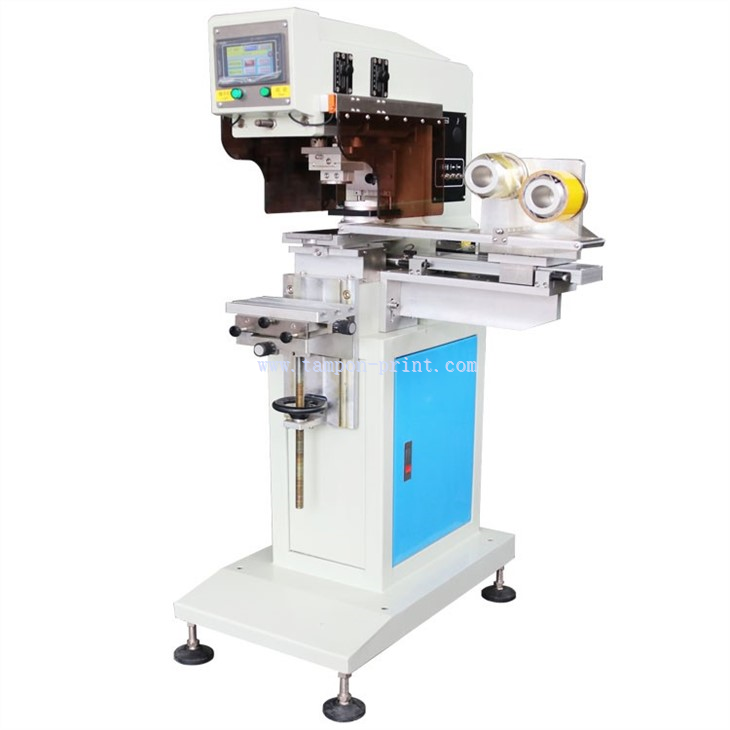

Small Tampo Pad Printing Machine
This is a small floor type two-color pad printer. All cast aluminum body, vertical structure, simple installation program, easy to operate, suitable for all kinds of memory cards, electronic products, plastic shell, hardware, stationery, small crafts, gifts of surface design logo printing.
Description
Shenzhen Topper Printing Machinery Co.,Ltd is one of the most experienced manufacturers and suppliers of small tampo pad printing machine in China. Please feel free to wholesale high quality equipment at competitive price from our factory. Customized orders are welcome.
Products Description
This is a Small tampo pad printing machine. All cast aluminum body, vertical structure, simple installation program, easy to operate, suitable for all kinds of memory cards, electronic products, plastic shell, hardware, stationery, small crafts, gifts of surface design logo printing.
Machine Description
1、Easy PLC+touch screen panel;
2、Equipped with auto pad cleaning device;
3、High quality aluminium alloy is used to make structure solid and weight light;
4、Close ink cup save the ink and low smell;
5、The machine is equipped with a safety cover, which automatically stops the machine when it is opened, making it safer;
6、Printing speed adjustable to fullfil various requirements;
7、"Inking twice, printing once" for thick ink film;
8、Able to sweep forward/backward without lowering pad to avoid ink drying at intervals.
Products Parameter
|
Model |
TP-150SP |
|
Operation |
Pneumatic |
|
Printing color |
1 |
|
Ink Loading System |
ink cup |
|
Plate Size |
100*250mm |
|
Pad Stroke |
80mm |
|
Ink Cup Size |
dia 90mm |
|
Max. Printing Speed |
1000pcs/hr |
|
Rated Voltage |
220V,50Hz |
|
Air Pressure |
6bar |
|
Dimension(L*W*H) |
750*800*1380mm |
|
Weight |
95kgs（Approx.） |
Necessary accessories for pad printer
1. Ink (select the appropriate ink according to the material of the printed product)
2. thinner (used for diluting ink and matching ink)
3.silicon pad
4.etched logo steel plate
5.holding fixture
6.Air compressor
Comapny Profile
Shenzhen Tampon Print Machine LTD ( TPM) is located in Guangdong Province, Dongguan City. TPM has been a industry leading supplier of Pad printer, Screen printer, Hot Stamping Machine and the relative Accessories supplies for 12 years under the same ownership. We have become well respected by our customers and others in the industry due to our knowledge of the pad print process and the personal attention we give to each and every customer. We offer a complete line of machinery and supplies of top quality and performance.
TPM as main an exporting Supplier in China. In order to give our customer more guarantee, avoiding more after-servucecaused. Only we using the spare parts to our machine good quality. The material of our machine is alloy cast aluminum and the surface is Powder spraying. The main parts which cylinder is from Original Germany FESTO.
TPM Printing machines which above mention have CE approval. And our customer from the whole world. Sure TPM is a satisfying supplier to you.
